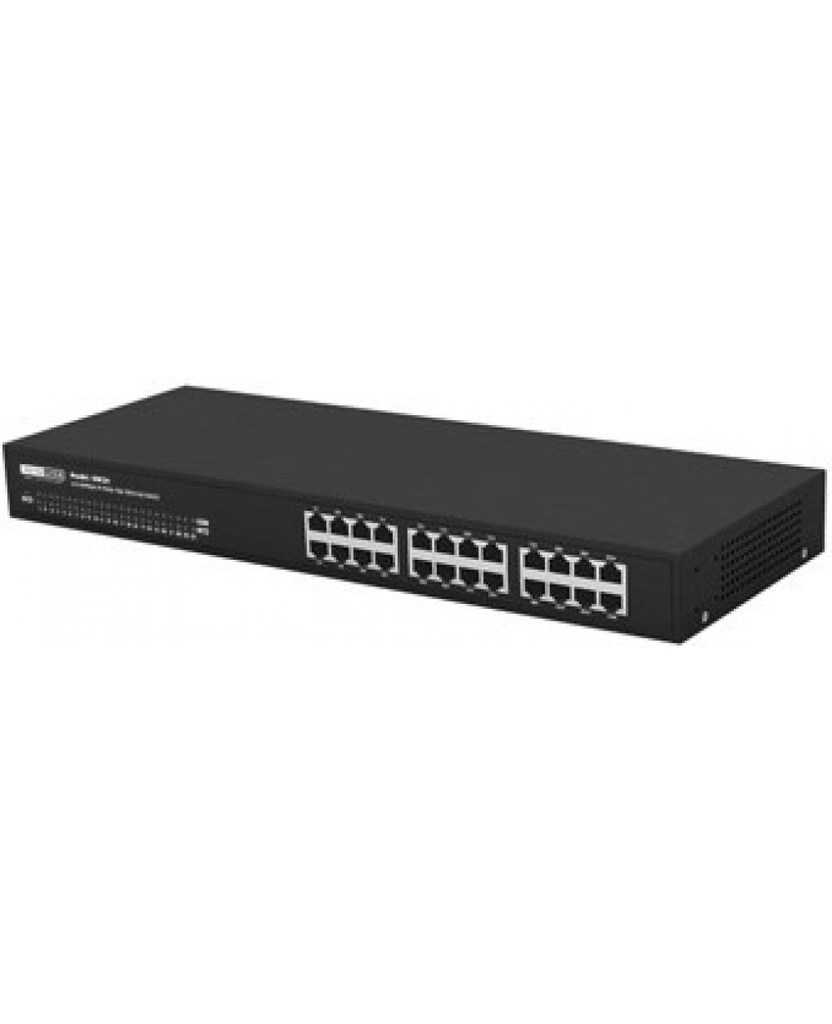

Totolink SW-24 Ethernet Switch
11 sold in last 24 hours
Totolink SW-24 Ethernet Switch
SW24 is a Fast Ethernet Switch that designed for Small and Medium Business or workgroup users. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, 19-inch rack-mountable steel case makes the device an ideal solution for business and office use.
Key Features
- Complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards.
- Provides 24 10/100Mbps auto-negotiation ports.
- Supports IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode.
- Supports MAC address auto-learning and auto-aging.
- LED indicators for monitoring power, link, and activity.
- Plastic case, desktop, or wall-mounting design.
- External power supply.
| Brand | TOTOLINK |
| Product Name | Totolink SW-24 Ethernet Switch |
| Model | SW-24 |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Country of Origin | South Korea |
| Interface | 24*10/100Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX) |
| General Functions | High-tech performance, Multi-connection and Simple-use |
| Button | Power Button |
| LED Indicators | Power, Link/Activity |
| Network Settings | 10Base-T: UTP Cat 3, 4, 5 cable (100m, max.) EIA/TIA-568 100Ω STP (100m max.) 100Base-Tx: UTP Cat 5, 5e cable (100m, max.) EIA/TIA-568 1100Ω STP (100m max.) |
| Warranty | 1 year |
| Environment | Operating Temperature: 0oC~40oC (32oC~104oC) Storage Temperature: -40~70oC (-40oC~158oC) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Power | 3.3V DC/2A |
